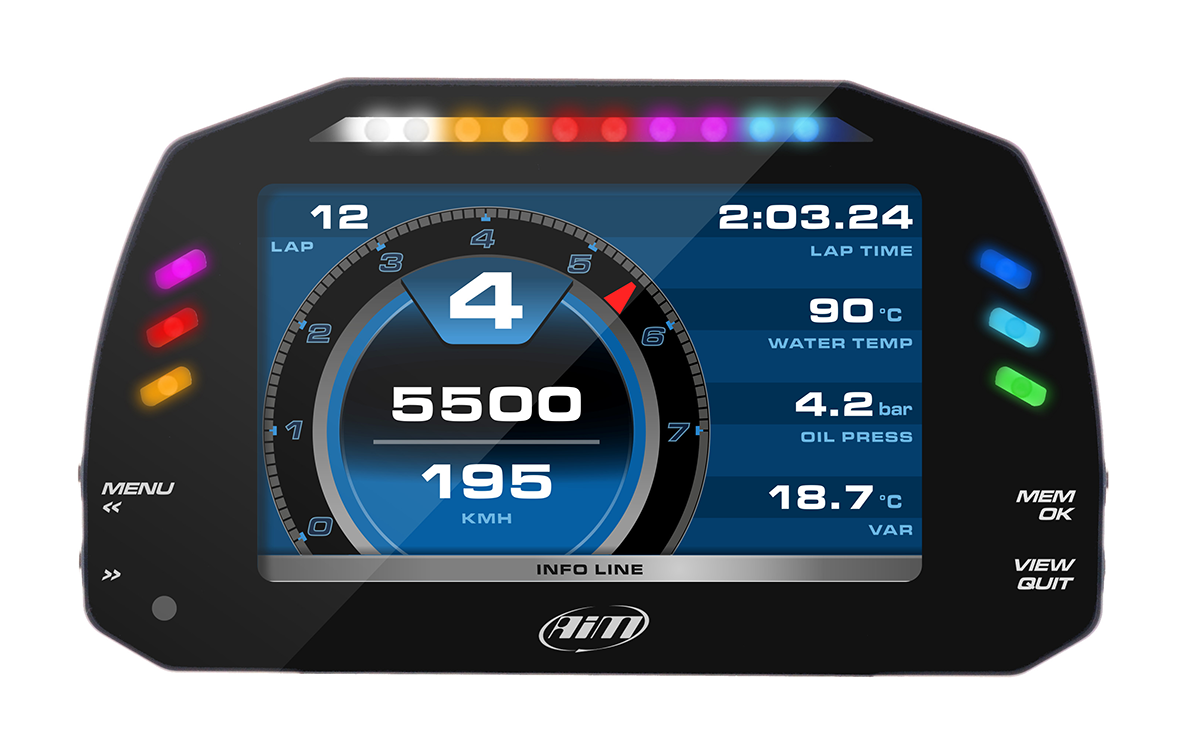

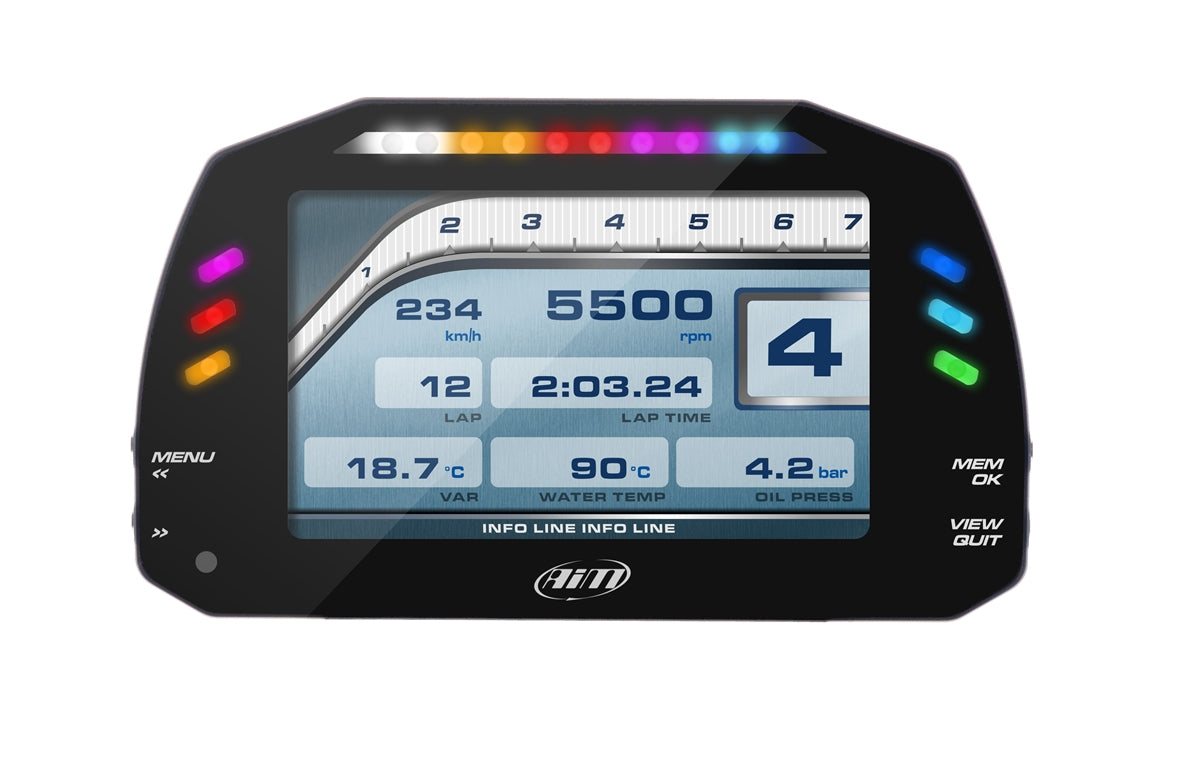

MXS 1.2 Strada TFT Dash - X21MXSSTRCAN0

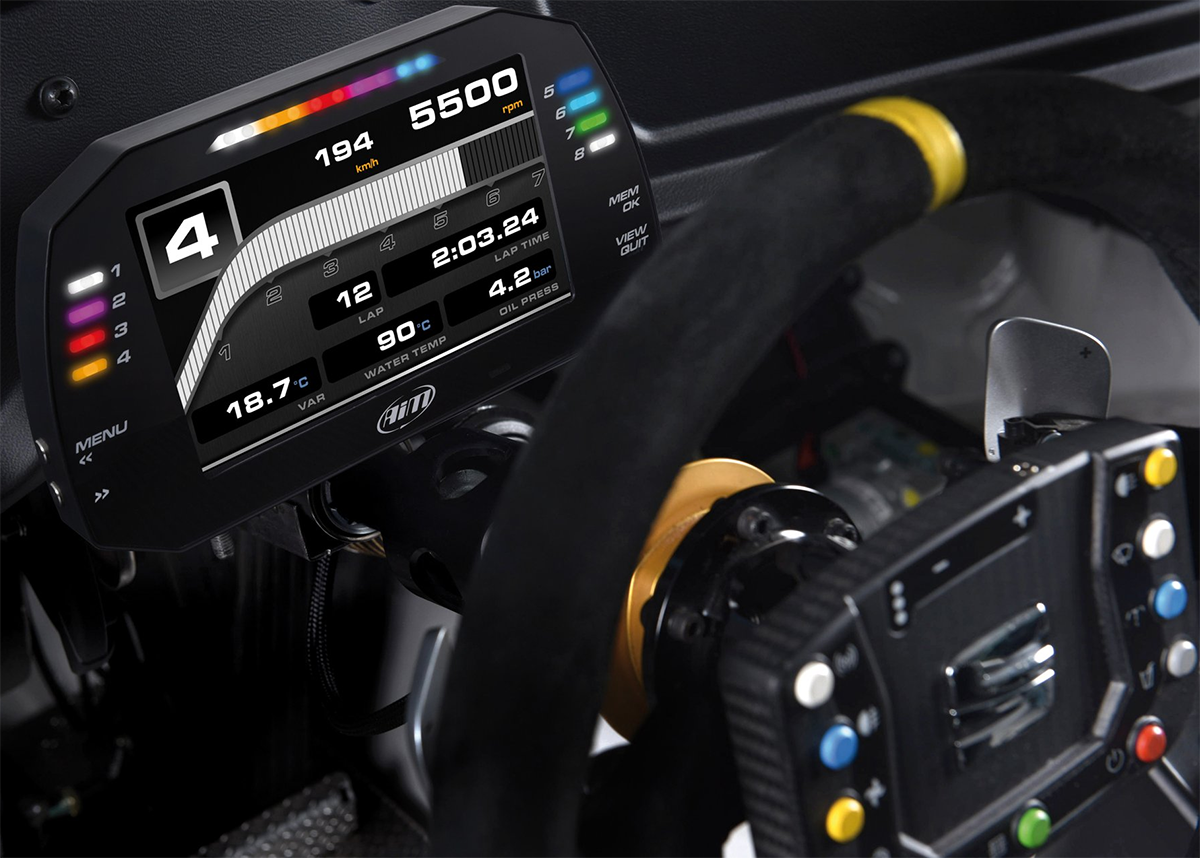

MXS Strada is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world. MXS Strada is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS08 module.

More Features

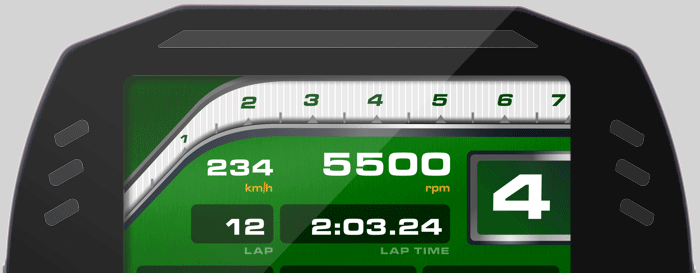

Watch your data in pre-configured pages

MXS 1.2 Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more... You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the push buttons.

High Contrast TFT Display

MXS 1.2 Strada features a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels. We always stock the color led lights version but this dash is also available in the "Street Icons" version (fuel, oil, water temp., etc., special order).

Flexible Alarms

The ten multicolored RGB shift lights can be customized as you like, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information. You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

Modularity

A Modular System

Using the built-in CAN bus you can add expansion modules to visualize additional info:

Dual Digital Outputs

MXS Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub

Adds 4 K thermo-couples.

LCU-One Can

Wide band Lambda controller LCU-One, when used with Bosch LSU 4.9 probe, provides Air/Fuel data and lambda values and allows to perfectly tune fuel delivery.

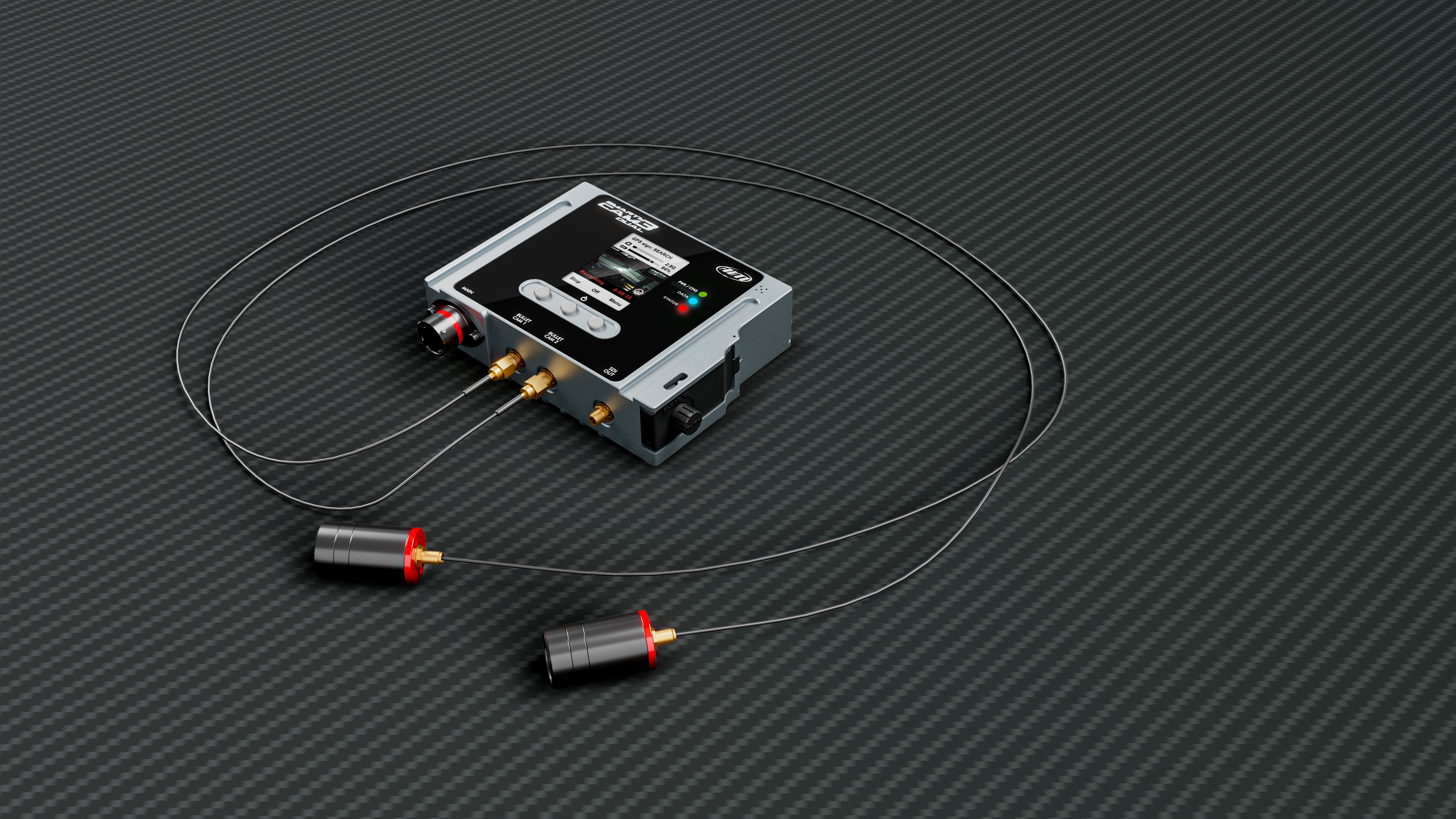

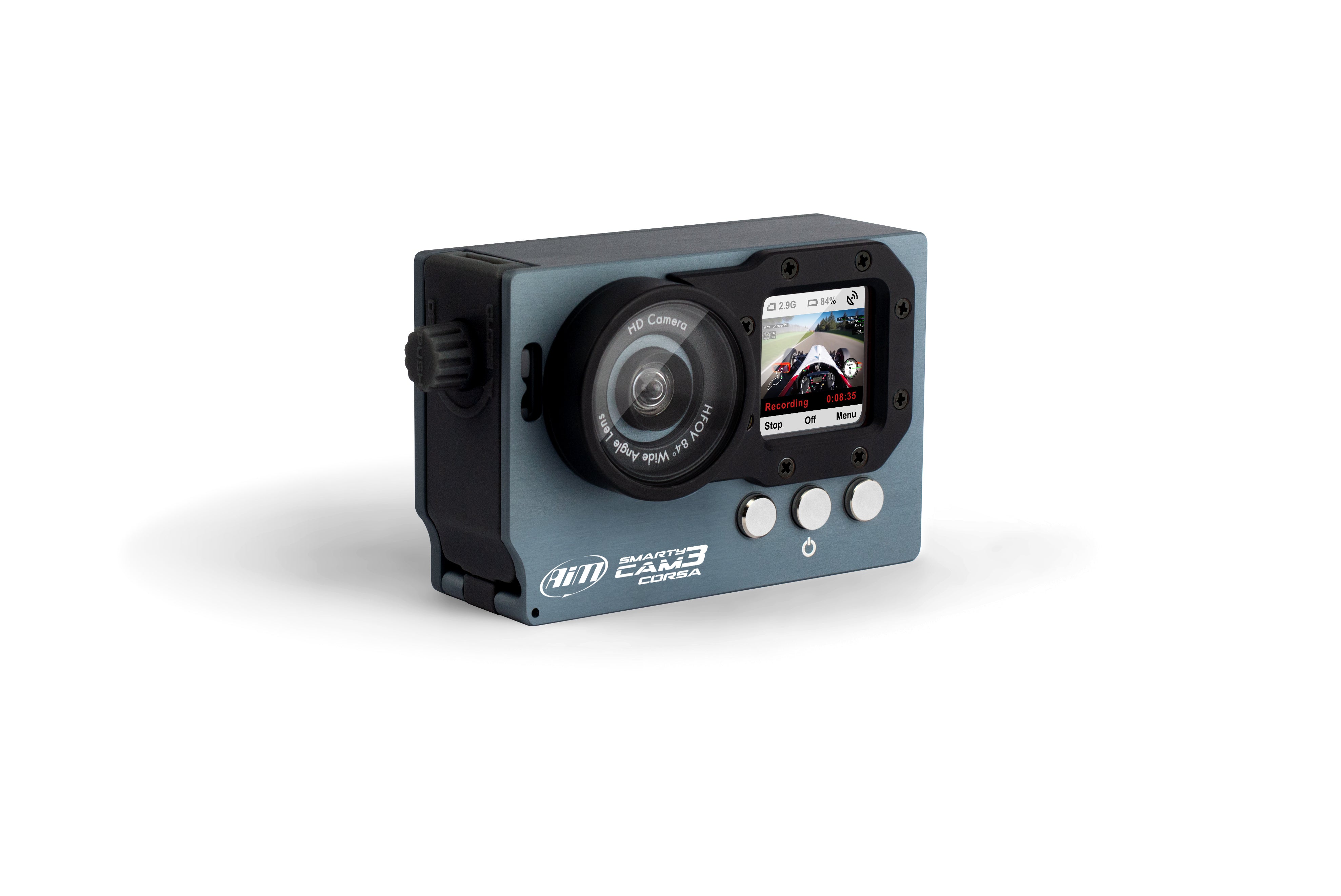

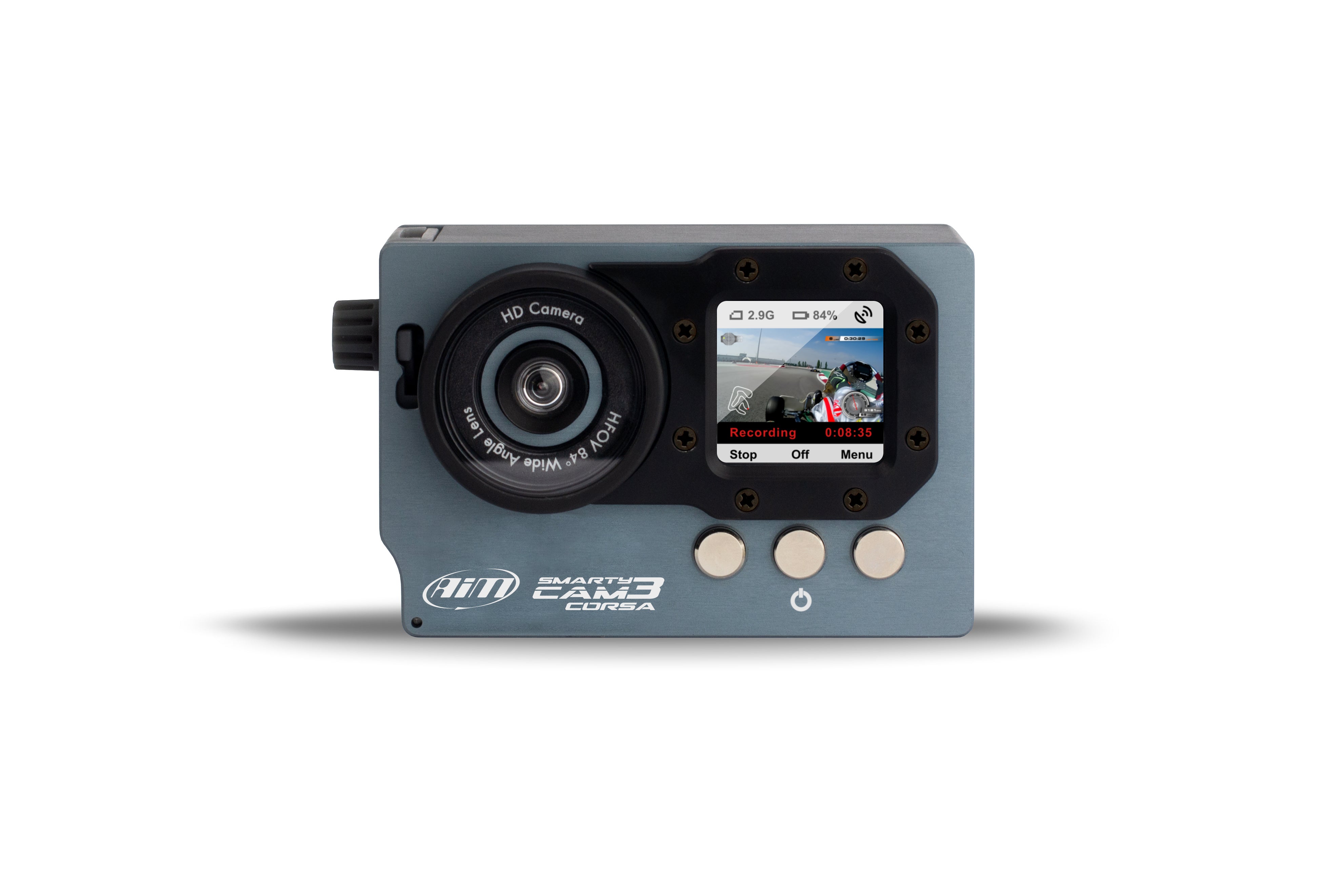

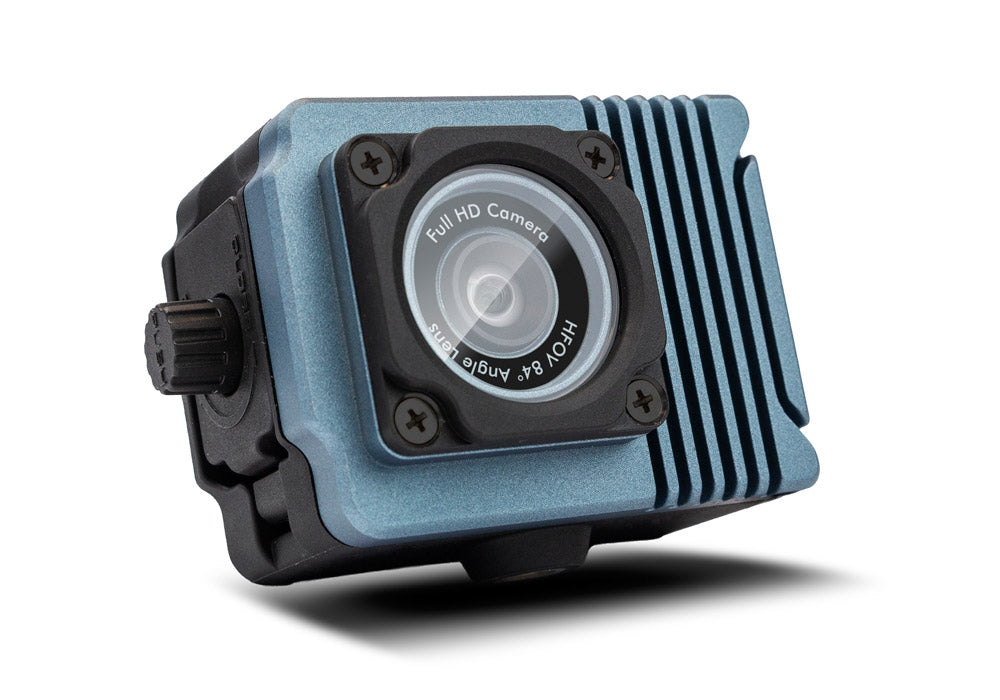

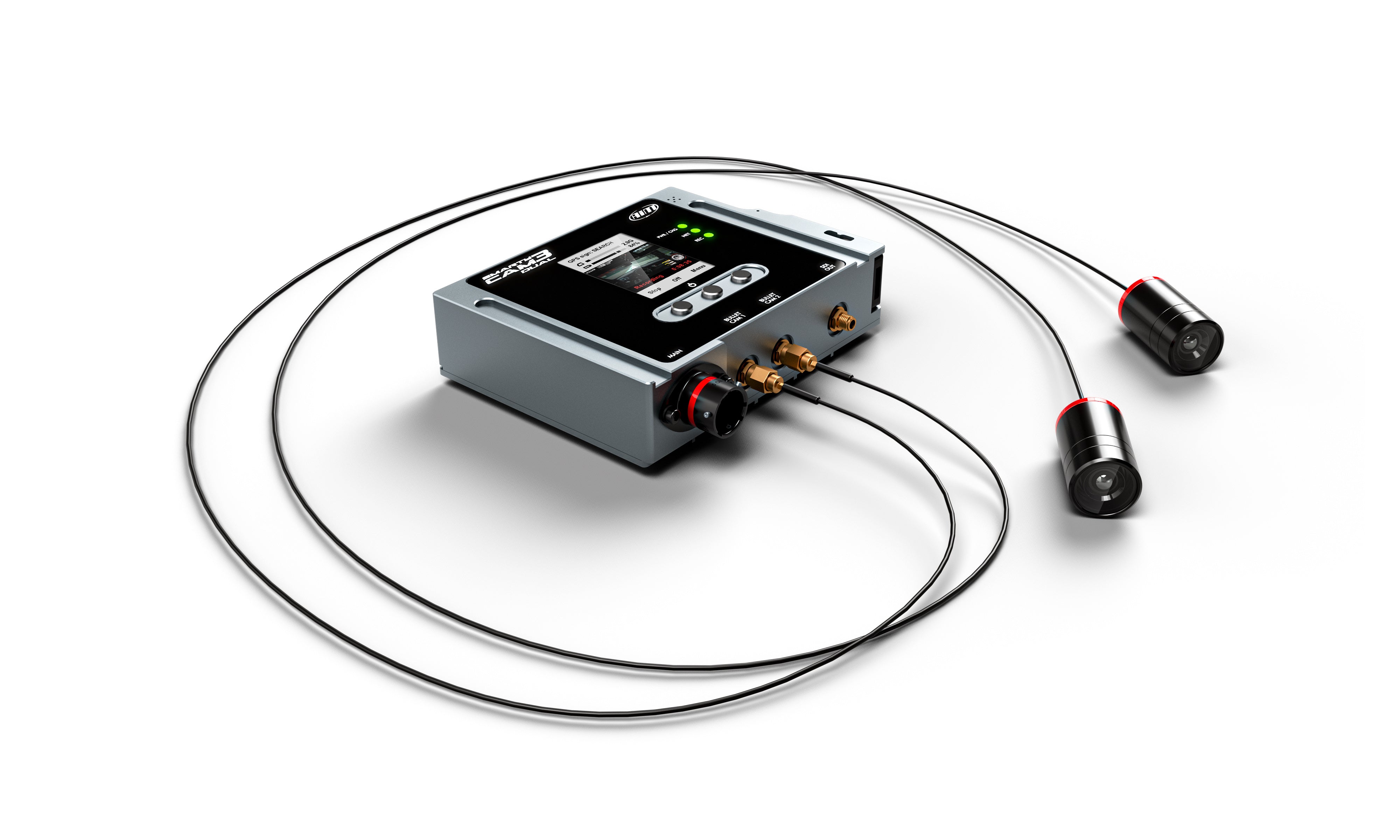

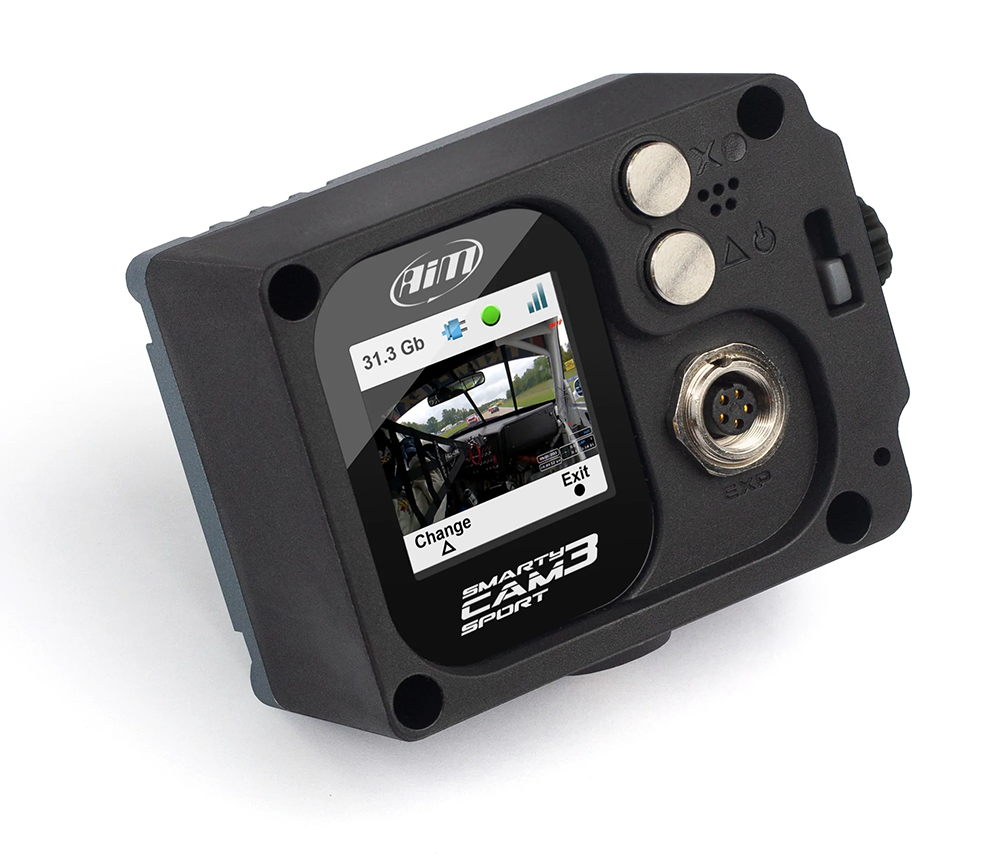

SmartyCam HD Cameras

Connect on-board camera that overlays videos with the data sampled by your logger.
