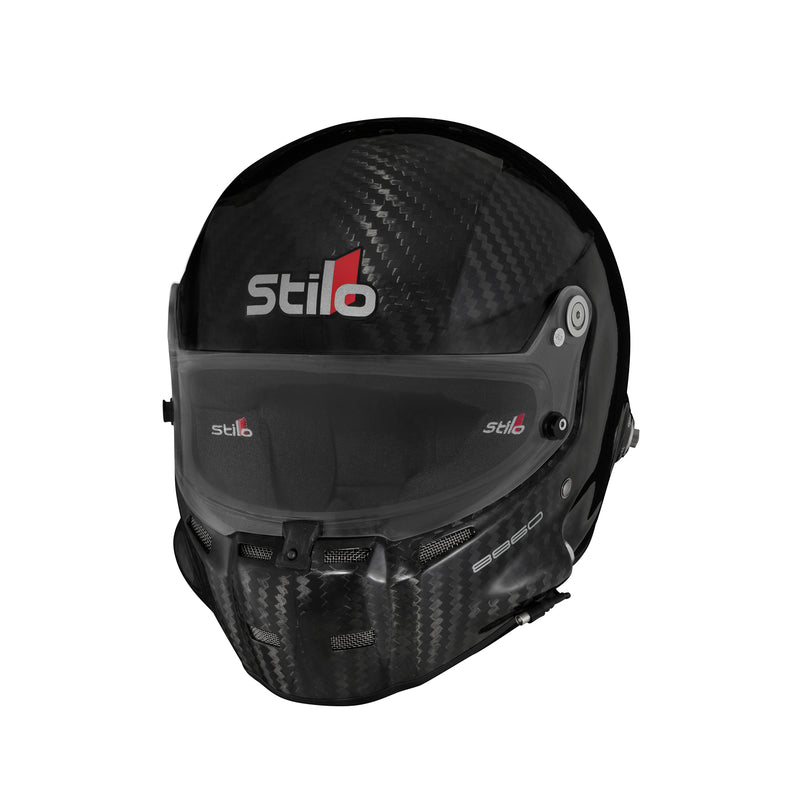

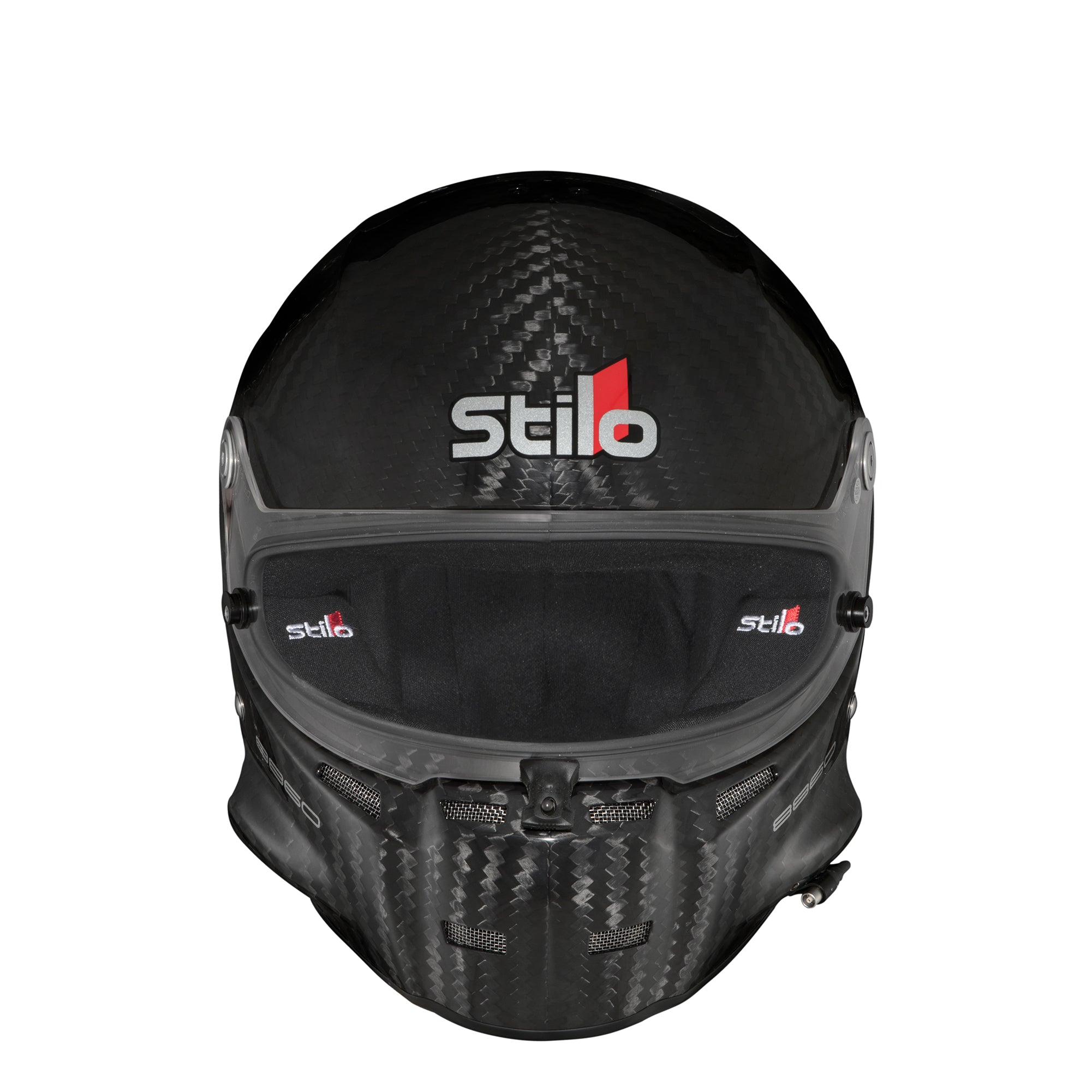

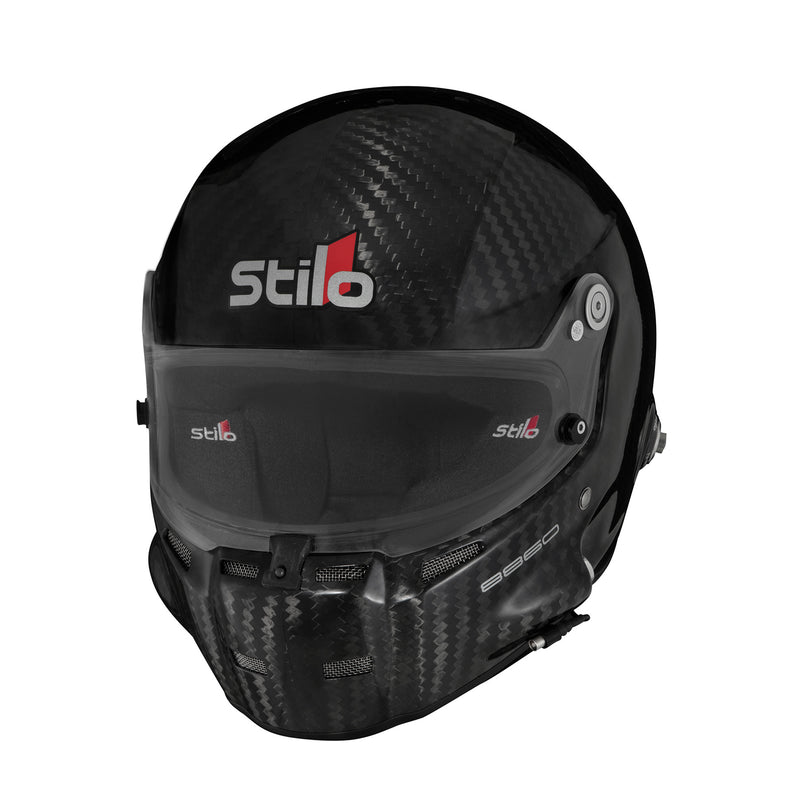

Stilo ST5F GT 8860-2018 Carbon Helmet

StiloSKU: AA0700BG1R57

Size: M-57
Price:
Sale price$4,645.00
Stock:
In stock

Description

HOMOLOGATED FIA 8860-2018

  • Material: medium tensile strength carbon fiber
  • Homologated to the new, the most stringent FIA 8860-2018 standard
  • Weight (intercom included) +-30 g:
    • Small shell 1,370 g (3.01 lbs)
    • Large shell 1,540 g (3.39 lbs)
  • Redesigned shell that optimizes shell size, airflow, visibility, and weight.
  • Integrated radio & ear plugs connections
  • Designed for professional circuit use
  • Improved aerodynamic characteristics
  • Removable noise reduction earmuffs
  • Optional full visor
  • Two different shell sizes
  • Factory fitted HNR (Hans) posts
  • Multi function visor locking clasp
  • New visor locking system central with double click
  • Ready for side and frontal drinking systems
  • Adjustable microphone mouth distance and ear area customization

Sizes:

Small shell | XS 54, S 55, M 57, L 59
Large shell | L 60, XL 61, XXL 63, XXXL 64

NOTE: Stilo fits small compared to other brands (HJC, Bell, Simpson, Zamp etc.). 99% of our customers need to go one size bigger in Stilo. If you fall between sizes we recommend you select the next size up. Ex: 58cm select size L-59. Or do not hesitate to call us for sizing advice!

ST5 VISORS
Anti-fog and anti-scratch visors.

A – AIR INTAKE
Designed for multiple fitments
with dedicated fixation tape.
B – BACK SPOILER
Designed for multiple fitments
with dedicated fixation tape.
C- FRONT SPOILER
Stabilizes aerodynamic vibrations
at high speed (position as shown in picture).

TOP AIR SYSTEM KIT
The exclusive Stilo “Top Air System” sends fresh air to the driver’s head and face.

With an innovative air flow regulation system you can send the air flow on the driver’s face for a better breathing or for cooling the driver’s head. The Top Air System can be fitted onto ST5F and GT models.

Thanks to the unique fixation system you can fit it more than once replacing the dedicated fixation tape.

Also available without flow adjuster.

SIDE AIR SYSTEM
Supplies the driver with fresh air when driving in closed cockpit cars. The air coupling for the helmet is made for 20mm tubes. Couplings are available for tubes with a different diameter, up to 32mm.

DRINKING SYSTEM

ST4 and ST5 are homologated with a drinking system integrated. The drinking system is comprised of a tube going inside the helmet with a silicon bite valve with anti-backflow system and a male quick coupling. You can connect the drinking system to the hydration bag with the female coupling. The drink system can be connected to the hydration bag through the female coupling as shown in the image.

QUICK COUPLING
Quick coupling for drinking system with anti-backflow valve. The coupling assembly is designed to allow the driver
a quick evacuation. In case of emergency indeed, by just a slight tug, the coupling slips off releasing the driver.

REMOVABLE EARMUFFS
ST5 is homologated FIA 8860-2010 with integrated earmuffs that offer excellent insulation from external noise and are certified for use in racing.


The pressure on the driver’s head can be adjusted with the special spare foam rubber padding of various thickness to be positioned with velcro. Should you wish a lower sound insulation, earmuffs can be replaced with dedicated ear cushions provided with the helmet.

ANTI-FOG AND ANTI-SCRATCH VISORS
YA0800 Clear
YA0801 Smoked medium
YA0802 Smoked dark
YA0803 Mirror medium
YA0804 Mirror dark
YA0805 Iridium blue medium
YA0806 Iridium blue dark
YA0807* Iridium red medium
YA0808* Iridium red dark
YA0809 Iridium yellow medium
YA0810* Iridium yellow dark
(*Not FIA approved)
TEAR-OFFS
YA0820 Tear-Offs, 4 packages of 3 tear-offs
VISOR SUN STRIP STICKER
YA0821 Visor sticker
SUN SCREEN SHORT VISOR
YA0816 Short visor
AIR INTAKE
YA0822 Air Intake
Stilo ST5F Air Intake
REAR SPOILER
YA0623 Rear Spoiler
FRONT SPOILER
YA0823
TOP AIR ADAPTOR
YA0714 45° Adaptor, 1.5 inches to helmet top air oval hose.
(For YA0715, YA0716, YA0700, YA0701)
TOP AIR VENT KIT
YA0715 With flow adjuster - 6 holes
YA0716 Without flow adjuster
Stilo ST5F side air system
SIDE AIR SYSTEM
YA0653 Side air system kit
YA0639 Side air adaptor
Stilo St5F drinking system
DRINKING SYSTEM
YA0600 Kit - Inner side of the helmet YA0601 + YA0602 + YA0603
YA0601 Bite valve in silicon rubber with anti-backflow system
YA0602 Water tube
YA0603 Male quick coupling
YA0604 Female quick coupling
YA0605 Kit - Hydration bag + tube + YA0604
Stilo ST5F removable earmuffs
SPARE REMOVABLE EARMUFFS
YA0002 Ear muffs
SPARE SOFT CUPS
YA0016 Developed for usage with ear plugs.
DETERMINING HELMET SIZE
Stilo helmet size measuring

Measure your head around its widest part, generally above your eyebrows and ears.
If you plan on wearing a Balaclava, you should measure your head with it on.
Compare the measurement to the table below to determine which size will be the best:

NOTE: Stilo fits small compared to other brands (HJC, Bell, Simpson, Zamp etc.). 99% of our customers need to go one size bigger in Stilo. If you fall between sizes we recommend you select the next size up. Ex: 58cm select size L-59. Or do not hesitate to call us for sizing advice!

Small shell | XS 54cm, S 55cm, M 57cm, L 59cm
Large shell | L 60cm, XL 61cm, XXL 63cm, XXXL 64cm

.
