AiM MXL2 LCD Racing Dash Logger


Sale price$3,149.00
Out of stock


MXS TFT Dash Logger - MXL2

MXL2 is the dash logger providing all the info needed by professional racers as well as beginners. The product has been designed with the goal of making the configuration and usage as smooth and easy as possible, whether you are an amateur or a seasoned professional with a sophisticated technical background.

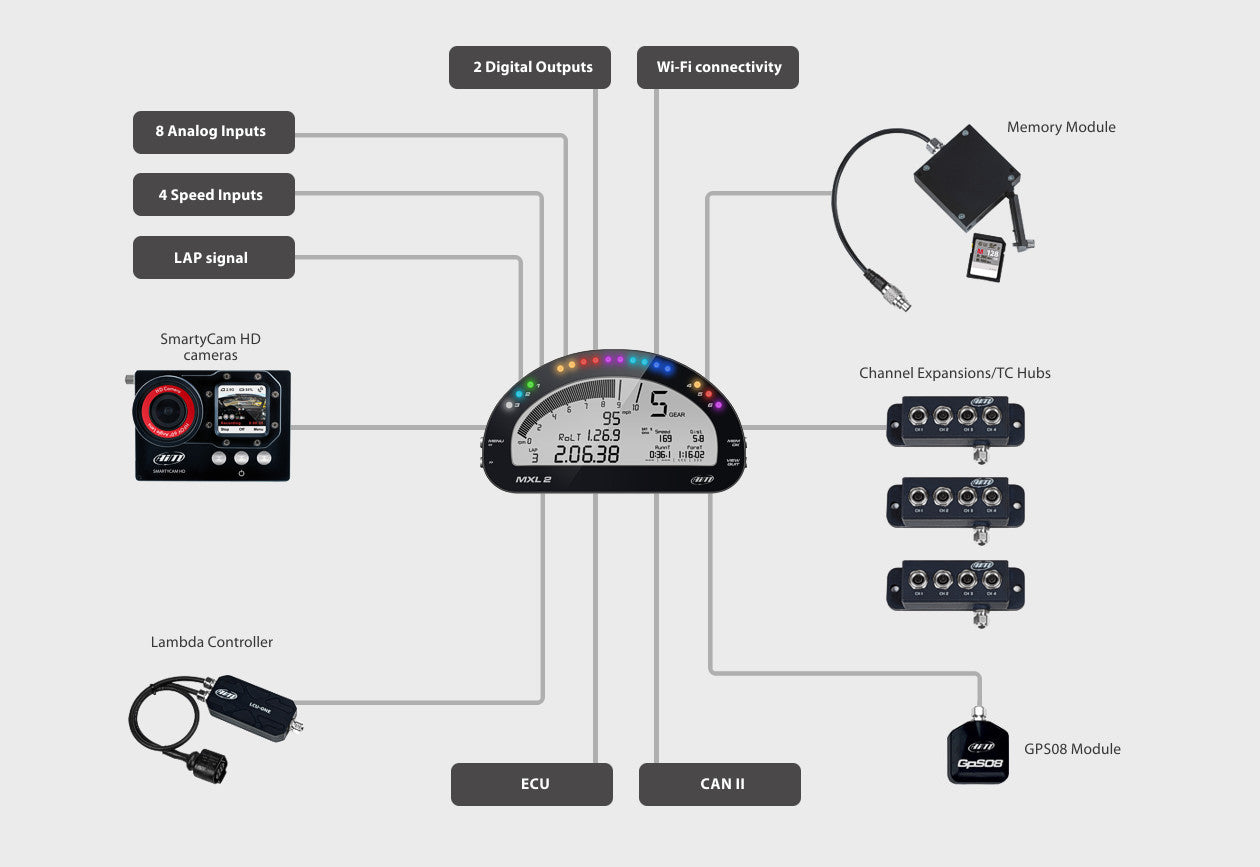

Performance and data acquisition can also be augmented by adding up to eight expansion modules.

Watch your data in pre-configured custom pages

With MXL you can define up to eight different custom pages, choosing among
a wide library of page styles, define which data to be shown, end of scale and measure units.

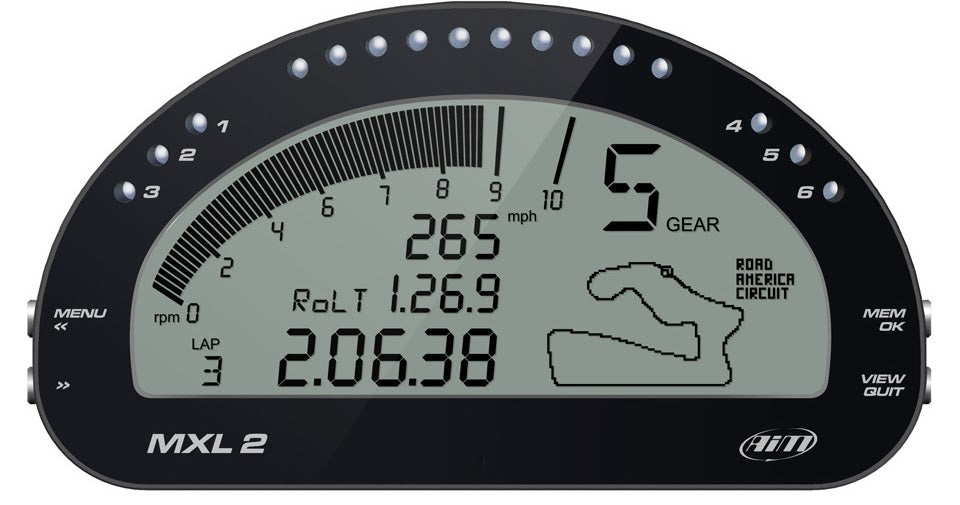

Sharp LCD Display

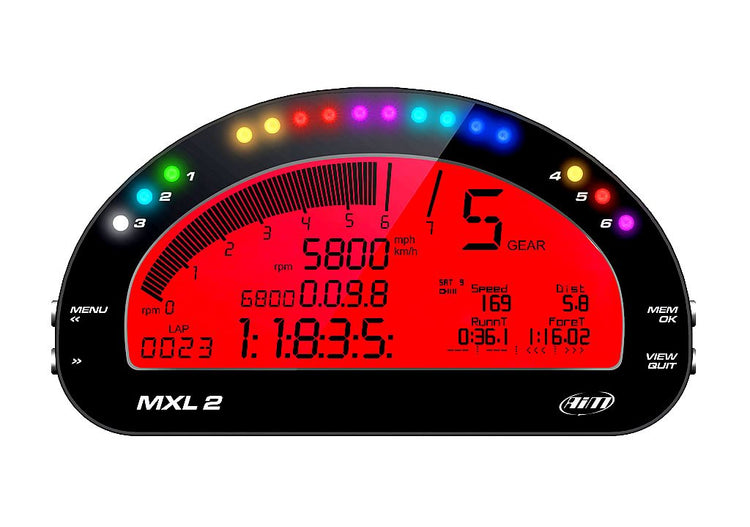

The MXL2 display features a high contrast traditional LCD, with a black to white ratio nearly double its predecessor, fused with a graphical LCD offering great flexibility in information display and alerts. The MXL2 now offers a dual colored backlight of high contrast white and red which can also be changed conditionally. An ambient light sensor keeps the backlight at optimum brightness levels.

Flexible Alarms

Six different alarm LEDs: you choose the conditions, the colors and the flashing frequency. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, GPS information or math channels. You can also associate an alarm LED a message and a digital output with each event

Dual Digital Outputs

MXL2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

GPS08 Module

Thanks to GPS08 Module (included in the kit) and its software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub

Adds 4 K thermo-couples.

LCU-One Can

Wide band Lambda controller LCU-One, when used with Bosch LSU 4.9 probe, provides Air/Fuel data and lambda values and allows to perfectly tune fuel delivery.

SmartyCam HD Cameras

Connect on-board camera that overlays videos with the data sampled by your logger.
