AiM Sports Solo2 DL RPM + Power Wiring Harness
The AiM V02589020, called the AiM Solo2 DL RPM Input Wire, is used to connect your AiM Solo2 DL to any vehicle that does not have an ECU (such as older cars). On the bottom right of your Solo2 DL there is an eight-pin connector that you can connect to the low voltage side of your ignition coil. The peak can be anywhere from +150 to +400 V or from a square wave with a peak of +5 to +50 V.
If you have a vehicle with an MSD Ignition box, this is your easiest way to log RPM. By connecting the positive and negative wires, your Solo2 DL unit will automatically top off the internal battery and power all down line appliances, such as a SmartyCam or other powered device.

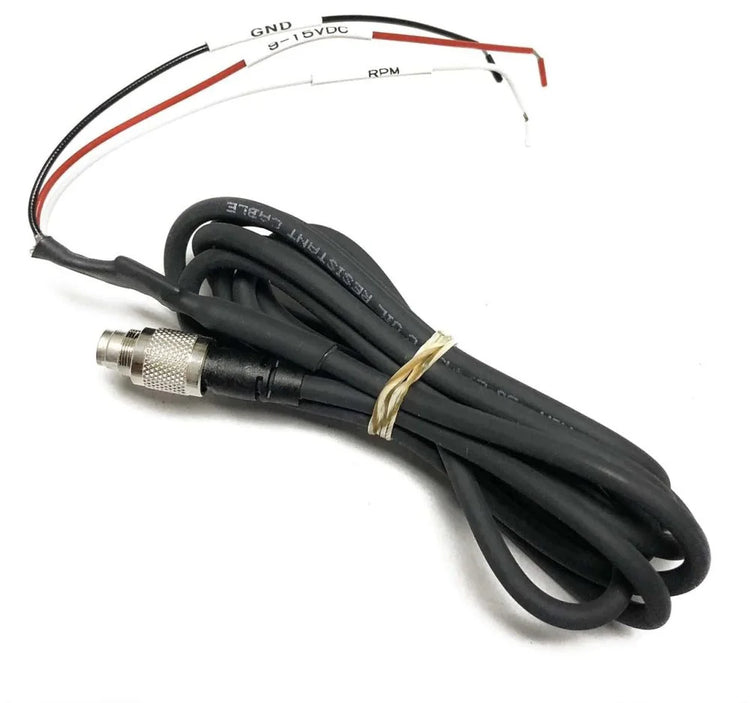

AiM Solo2 DL RPM Input Wire Details
- Manufacturer: AiM Sports
- Manufacturer part number: V02589020
- End 1: male 712 8-pin screw-on
- End 2: flying leads (open wires) 12 VDC positive , negative, and RPM input
- Length: 2 meters (6.6 feet)
AiM Solo2 DL RPM Input Wire Uses
- Solo2 DL to older external ignition coil engines
- Solo2 DL to RPM tach lead
- Solo2 DL to MSD Ignition box
